Batscan - Installation Material & Accessories

Installation Material & Accessories

The Modular design of Batscan allows for easy adaption to any environment ranging from office to submarine. The modules can be used with their own enclosure or be mounted inside customized cabinets.

IP65 Enclosures

The Batscan IP65 Enclosures are practical to use for gouping the modules in order to optimize the wiring harness to the battery terminals. The size of the enclosure can be selected to accomondate all modules requiered to measure one complete string of Block/Cells, or one tier of Block/Cells, depending on the layout of the battery.

Flexible choice of layout for optimum wiring.
Easy to install, directly on battery rack, or wall mounted.
Avalible in many sizes ranging from 4 to 40 modules.

Model Number: IP65-5x4 (Example: 5 rows x 4 columns = 20 modules)

IP65 Intallation kit

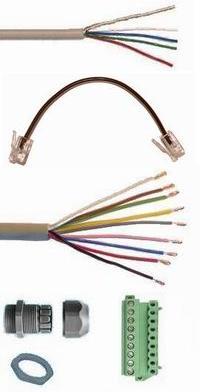

The Batscan IP65 kit includes the nessecary cables and accessories for mounting the modules inside the enclosures.

DeviceNet cable between IP65 boxes.
Modular cables between modules.
Measuring cables to battery terminals.
Plastic cable glands.
Terminal blocks.

IP65-2x4: Wall mounted IP65 enclosure for up to 8 Batscan Modules.

IP65 Intallation kit
